Chemical Transfer Hose
CHEMICAL (GREENLINE) HOSE
Recommended for: Conveying dilute chemicals e.g. Alums Liquor, Caustic Soda. Lime soltions, Dilute Hydrochloric Acid. Dilute Sulphuric acid (Ref. Gates Chemical Resistance Table or Gates representative for further information.)
-40°C to + 100°C
Construction:Tube : Specially compounded EPDM, Black.
cover :Specially compounded EPDM, Black.
Reinforcement : Single high tenacity synthetic yarn from 3/4” to 1 1/4” size & Double high tenacity synthetic yarn from 1 1/2” to 2” sizes.
Standars : Exceeds IS: 7654
Material Transfer Hose
PLASTER/GROUTING HOSE
Recommended for: High Pressure hose for plaster spraying/Hose for conveying cement mixture for plastering applications
-30°C to +80°C
Construction:Tube : Highly abrasion resistant, natural rubber [Black]
Cover : Abrasion resistant & resilient natural rubber [Black]
Reinforcement : Two braids of high tenacity synthetic textile yarn.
Standars : Exceeds IS: 7654
CONCRETE HOSE
Recommended for: To handle the pumping of concrete with high head pressure from concrete boom truck and as a discharge hose on the delivery end of high pressure concrete pumps. Specially designed high abrasion resistant tube is most suited for handling wet concrete. Plaster or gout material.
-40°C to + 70°C
Construction:Tube : Specially compounded abrasion resistant & resilient natural rubber [Black].
Cover : Specially compounded abrasion resistant natural rubber [Black].
Reinforcement : Two layers of high tensile steel wire.
Standars : Gates Proprietary Hose
SAND BLAST (GREENLINE) HOSE - 7 Bar
Recommended for: Sand & Shot blasting applications, where abrasive materials are carried at high velocity
-40°C to + 70°C
Construction:Tube : Specially compounded abrasion resistant & resilient natural rubber [Black].
Cover : Specially compounded abrasion resistant natural rubber [Black].
Reinforcement : Double braid high tenacity synthetic textile yarn. Twin copper wires, laid spirally in opposite direction for electrical conductivity.
Standars : Exceeds IS: 5894 Type 1
Air Hoses
AIR-WATER (GREENLINE) HOSE
Recommended for: All air and water applications requiring maximum flexibility in engineering Industry, workshop, shipyards, irrigation etc.
-30°C to + 82°C
Construction:Tube : Specially compounded Nitrile rubber, [Black]
Cover : Specially compounded high abrasion resistant Nitrile rubber for size from 1/2” to 3/4” sizes. Highly abrasion resistant modified natural rubber from 1” to 2” sizes.
Reinforcement : Single braid of high tenacity synthetic yarn.
Standars : Exceeds IS: 446 Type 1, 444 Type 2
ROCK DRILL (GREENLINE) HOSE
Recommended for: Heavy duty, high pressure use on industrial construction and pnematic mining applications, requiring an extra heavy duty hose with an oil resistant tube and abrasion resistant cover.
-30°C to +82°C
Construction:Tube :Specially compounded Nitrile Rubber, [Black]
Cover :Specially compounded high abrasion resistant Nitrile rubber for 1/2” & 3/4” size [Black]. High tension resistant modified natural rubber for 1” size.
Reinforcement : Single braid of high tenacity synthetic yarn.
Standars : Exceeds IS: 446 Type 3

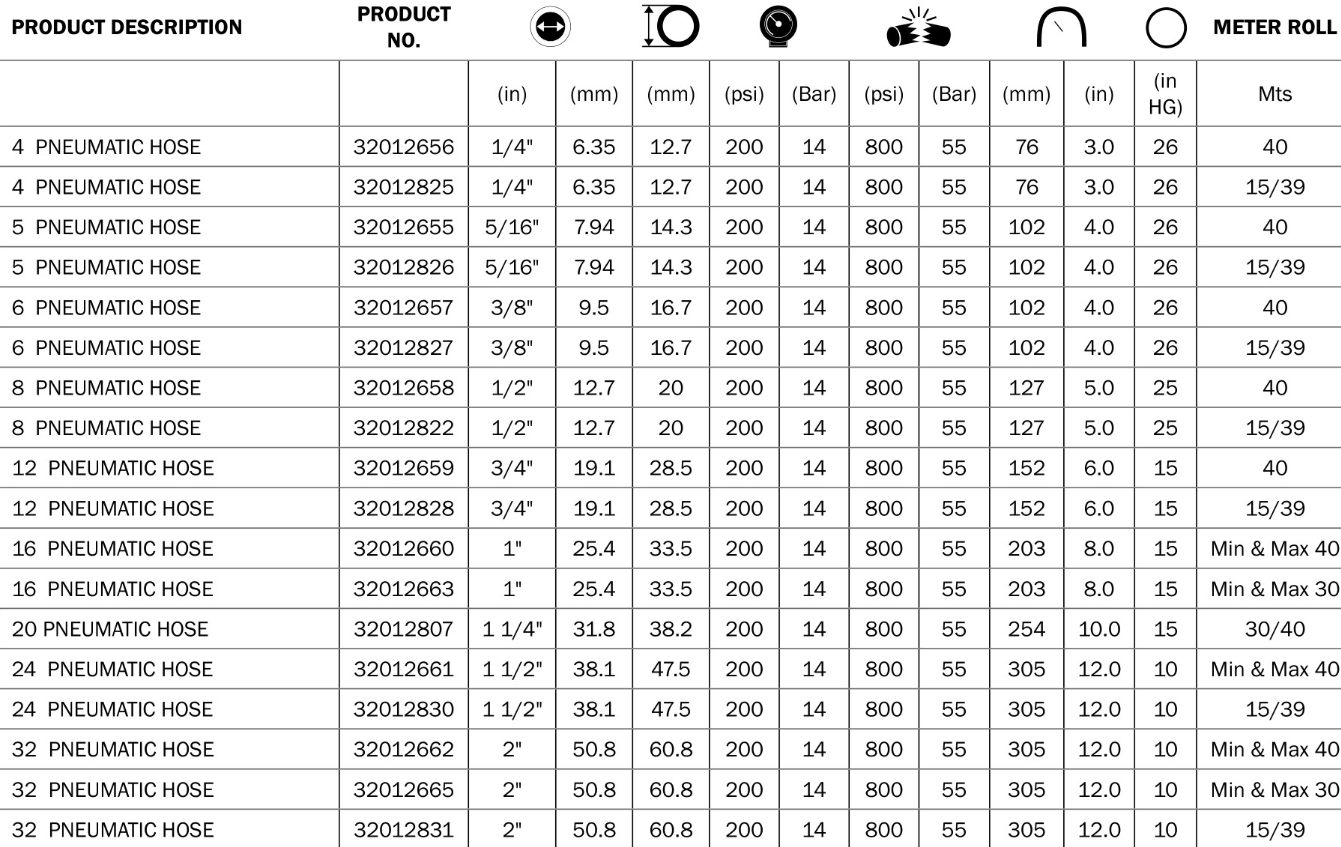

PNEUMATIC (GREENLINE) HOSE
Recommended for: All types of pneumatic tools in industries, compressed air applications and construction industry.
-30°C to+82°C
Construction:Tube :Modified Nitrile Rubber, Black
Cover : Specially compounded high abrasion resistant nitrile rubber for sizes 1/4” to 3/4” [Black]. Highly abrasion resistant modified natural rubber for sizes 1” and above [Black].
Reinforcement : Single braid of high tenacity synthetic yarn from sizes 1/4” mm to 1”, single braid of high tensile brass coated Steel wire from sizes 1 1/4” mm to 2”.
Standars : Exceeds IS: 446 Type 2
MINE MASTER™ AIR DRILL 500
Recommended for: Heavy duty, high pressure use on industrial construction and pneumatic mining applications, requiring an extra heavy duty hose with an oil resistant tube and abrasion resistant cover.
-30°C to + 82°C
Construction:Tube :Specially compounded Nitrile Rubber, Black
Cover :Option 1: Specially compounded highly abrasion resistant natural rubber, Black. Option 2: Highly abrasion resistant modified Nitrile rubber, Yellow. in 1 1/2 size with perforated cover. Yellow cover meet MSHA flame.
Reinforcement : Single braid of high tensile steel wire.
FURNACE HOSE
CARBON FREE HOSE (Non Conductive Hose)
Recommended for: Specialised Furnace Coolant applications in Electrical Steel Industry and other Non-Conductive applications. Engineered with specially developed carbon free tube and cover, whereby meeting service requirements of low leakage current.
-40°C to +95°C
Construction:Tube : Modified synthetic Rubber, Grey
Cover : Specially compounded Nitrile, Green
Reinforcement : Single braid high tenacity synthetic yarn for (3/8” to 1”) sizes. Double braid, high tenacity synthetic yarn for 1 1/4” & above sizes.
WATER JET HOSE
Recommended for: Ultra high pressure water blasting applications, not to use for Hydraulic application.
-20°C to +70°C
Construction:Tube : Black, oil resistant, synthetic rubber (Nitrile - type C).
Cover : Black, oil resistant, synthetic rubber [Neoprene -type A) Impulse tested for more than 25,000 cycles at 15,000 psi pressure to ensure good service life.
Reinforcement : Four spirals of very high tensile steel wire.
PETROLEUM TRANSFER HOSES
FUEL MASTER™ CURB PUMP 1WB HOSE
Recommended for: Dispensing all types of petrol and diesel fuels for service station pumps. A heavy duty hard wall hose which does not collapse in reel use or behind the nozzle in demanding service conditions.
-30°C to +49°C
Construction:Tube : Specially compounded Nitrile rubber black, resistant to highly aromatic gasoline.
Cover : Modified Nitrile rubber. Available in Blue, Black, Green, Red and Yellow covers (smooth finish) as per below part nos.
Reinforcement : Single braided high tenacity steel wire.
Standard : Meet and Exceed EN 1360: 2013 ATEX Approved
PETROL (GREENLINE) HOSE
Recommended for: Dispensing all types of petrol and diesel fuels for service station pumps. Electrical conductivity having two number braided copper flex wires laid spirally in opposite direction for electrical conductivity.
-30°C to +49°C
Construction:Tube : Specially compounded nitrile rubber black. Resistant to highly aromatic gasoline.
Cover : Modified Nitrile rubber, Black.
Reinforcement : Two Braid of high tenacity synthetic yarn. Copper wire ensures reliable conductivity.
Standard : Exceeds IS : 2396
FUEL MASTER™ AIRCRAFT FUELING HOSE
Recommended for: All operations associated with ground fueling & de-fuelling of aircrafts. Suitable for applications with petroleum fuels having an aromatic hydrocarbon content not exceeding 30% by volume.
-40°C to +70°C
Construction:Tube : Black, Resistant to aviation fuel, Nitrile Rubber.
Cover : Black, Anti-static, Non-flammable, Abrasion resistant, Blend of Synthetic Rubber.
Reinforcement : 2 braid of High-tenacity synthetic yarn.
Meets BS EN 1361:2004, EI 1529:2014 Type C Grade 2, IS 5797:2016, Type C & Grade.
STEAM TRANSFER HOSES
PLANT MASTER® STEAM 250 (Formerly–Steam King)
Recommended for: Heavy duty industrial uses including heat control, melting of substance such as wax and glue, thawing. cleaning and steam transfer applications. It will handle all types steam saturated and superheated up to 185 psi and +232 oC. Note: Do not alternate change between steam and water.
-40°C to +232°C
Construction:Tube : EPDM, Black.
Cover : EPDM, black. All sizes are perforated.
Reinforcement : Two braids of high tensile brass coated steel wire.
Standard : Exceeds IS: 10655 Type 3 & BS: 5342 Type 2
STEAM (GREENLINE) HOSE
Recommended for: Excellent steam handling. The hose features a specially compounded, perforated synthetic rubber cover intended for use where the hose is exposed to all types of steam- saturated and superheated up to 150 psi and 195°C. Note: Do not alternate change between steam and water.
-40°C to + 195°C
Construction:Tube : EPDM, Black
Cover : EPDM, black. All sizes are perforated.
Reinforcement : Single braid of high tensile brass coated steel wire.
Standard : Exceeds IS: 10655 Type 2 & BS: 5342 Type 1
